夜莺v8执行自定义脚本并告警通知

n9e为夜莺平台的名称缩写，本文中所有提及n9e的地方均指夜莺v8平台。

系统架构图

数据流说明

数据采集层: Categraf作为采集器执行自定义脚本，将数据转换为Influx格式
存储层: VictoriaMetrics作为时序数据库存储监控数据
监控层: 夜莺v8平台配置数据源和告警规则，使用PromQL进行数据查询
告警层: 告警引擎根据规则触发告警事件
通知层: 通过自定义通知配置将告警信息发送到各种渠道

Categraf

Categraf的文档推荐阅读，doc

自定义脚本

自定义脚本可以是任何能够在Linux环境下执行的脚本，如bash、python、shell等。我这里采用golang编译好的二进制文件，只要能输出符合Influx格式的数据即可。这是我编写的一个简单的脚本，用于监控网站的http状态码：

代码展开

/*
监控说明：
名称: 监控yqqy.top服务运行状态
通知: YY
频率: 0 10 * * * *

输出格式:
采用InfluxDB行协议格式，包含以下字段：
- measurement: server_yqqy_running_metrics
- tags: url, status_code
- fields: response_time_ms
- timestamp: 纳秒级时间戳
*/
package main

import (
	"fmt"
	"log"
	"net/http"
	"time"
)

const (
	monitorName = "server_yqqy_running_monitor"
	measurement = "server_yqqy_running_metrics"
)

type MonitorData struct {
	URL        string `json:"url"`
	StatusCode int    `json:"status_code"`
	Timestamp  int64  `json:"timestamp"`
}

type Monitor struct {
	client *http.Client
	url    string
}

func NewMonitor() *Monitor {
	return &Monitor{
		client: &http.Client{
			Timeout: 30 * time.Second,
		},
		url: "https://yqqy.top",
	}
}

func (m *Monitor) queryData() ([]MonitorData, error) {
	resp, err := m.client.Get(m.url)
	data := MonitorData{
		URL:       m.url,
		Timestamp: time.Now().UnixNano(),
	}

	if err != nil {
		// 网络错误或其他错误
		data.StatusCode = 0
		return []MonitorData{data}, fmt.Errorf("HTTP request failed: %w", err)
	}
	defer resp.Body.Close()

	data.StatusCode = resp.StatusCode
	return []MonitorData{data}, nil
}

func (m *Monitor) formatInfluxOutput(data []MonitorData) string {
	var lines []string
	for _, record := range data {
		// 构建tags和fields
		tags := fmt.Sprintf("url=%s", record.URL)
		fields := fmt.Sprintf("status_code=%di", record.StatusCode)
		line := fmt.Sprintf("%s,%s %s %d", measurement, tags, fields, record.Timestamp)
		lines = append(lines, line)
	}

	return lines[0]
}

func (m *Monitor) run() (string, error) {
	// 查询数据
	data, err := m.queryData()
	if err != nil {
		return "", fmt.Errorf("查询数据失败: %w", err)
	}

	// 格式化输出
	influxOutput := m.formatInfluxOutput(data)
	return influxOutput, nil
}

func main() {
	// 创建监控器
	monitor := NewMonitor()

	// 运行监控
	result, err := monitor.run()
	if err != nil {
		log.Printf("[%s] 运行失败: %v", monitorName, err)
	}

	// 输出结果
	fmt.Println(result)
}

编译之后，将二进制文件放入到 /n9e/categraf/scripts/ 目录下，确认文件权限为可执行。

修改exec插件的配置文件 vim /n9e/categraf/conf/input.exec/exec.toml，按需修改，改成适合自己脚本路径的配置。

shell

# collect interval
interval = 15

[[instances]]
# commands, support glob
commands = [
"/n9e/categraf/scripts/server_yqqy_running_monitor"
]

# # timeout for each command to complete
# timeout = 5

# # interval = global.interval * interval_times
# interval_times = 1

# choices: influx prometheus falcon
# influx stdout example: mesurement,labelkey1=labelval1,labelkey2=labelval2 field1=1.2,field2=2.3
data_format = "influx"

/n9e/categraf/conf/config.toml配置我保持默认，如果你需要修改，请参考官方文档
配置文件修改之后，systemctl restart categraf.service重启categraf服务
重启之后数据就会写入VictoriaMetrics数据库，你可以在/n9e/categraf中测试脚本是否能够正常输出数据。
shell
```
$ ./categraf --test --inputs exec
```
1

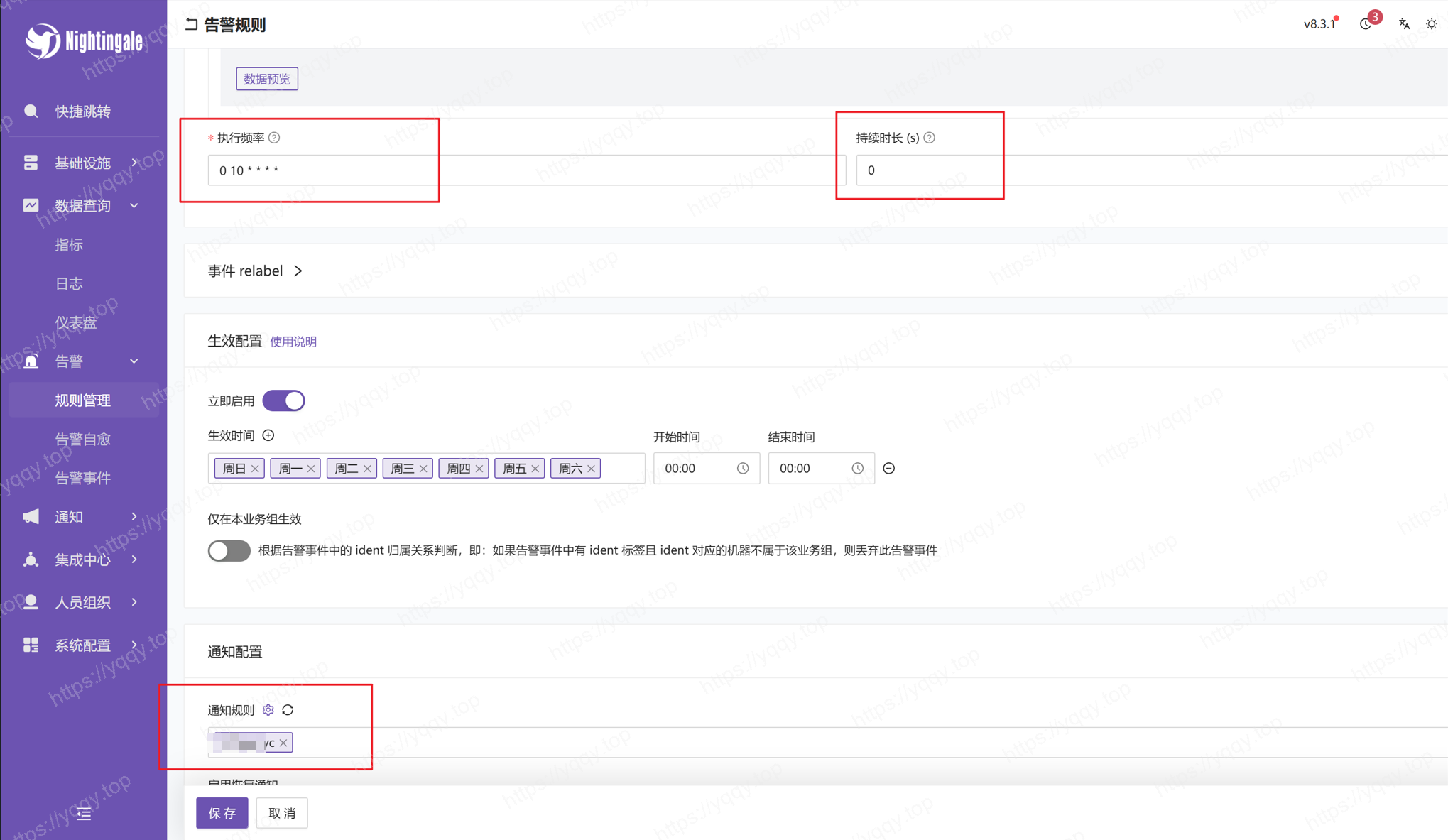

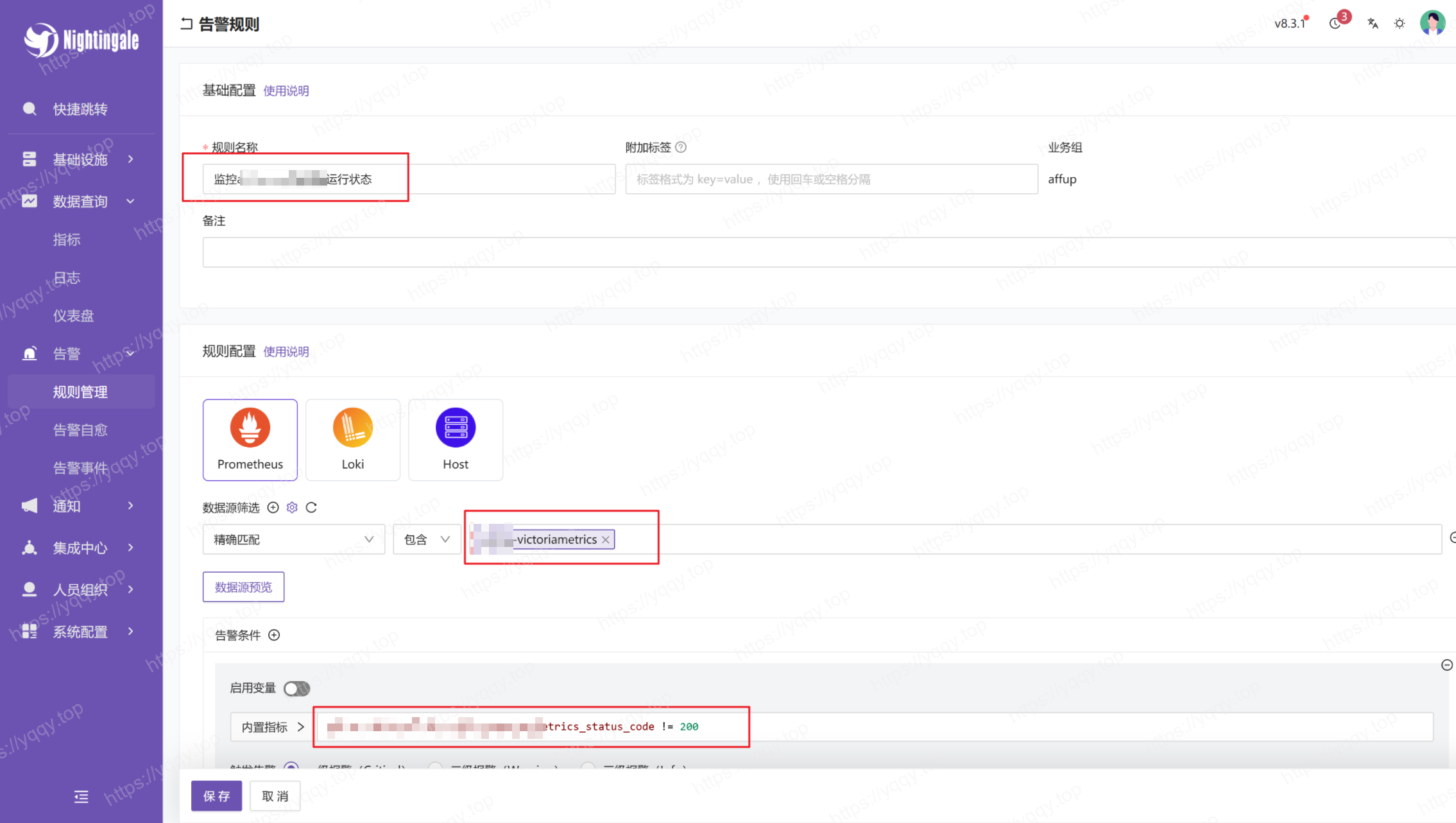

配置夜莺告警

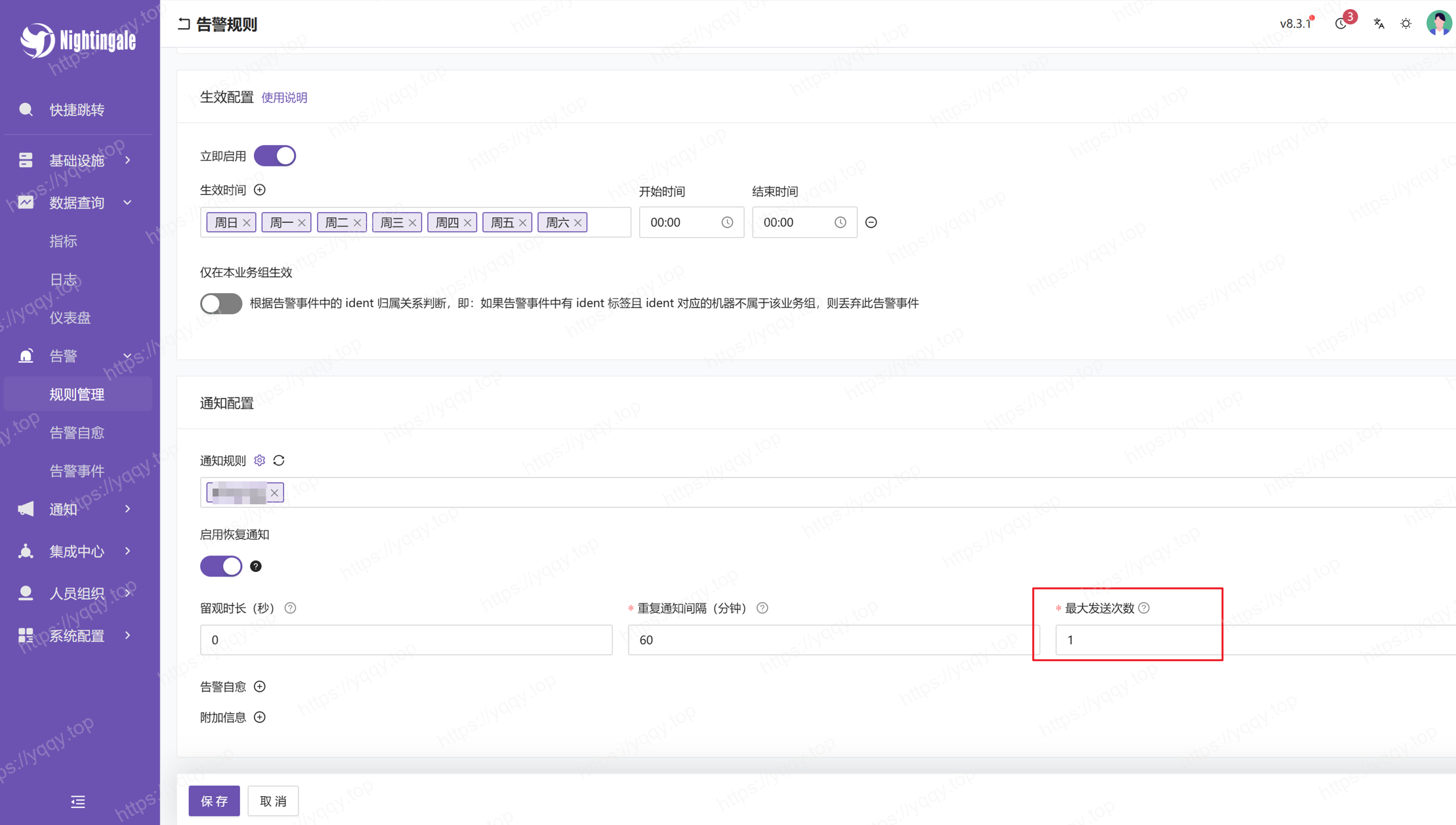

然后在通知规则中配置通知人即可

自定义告警

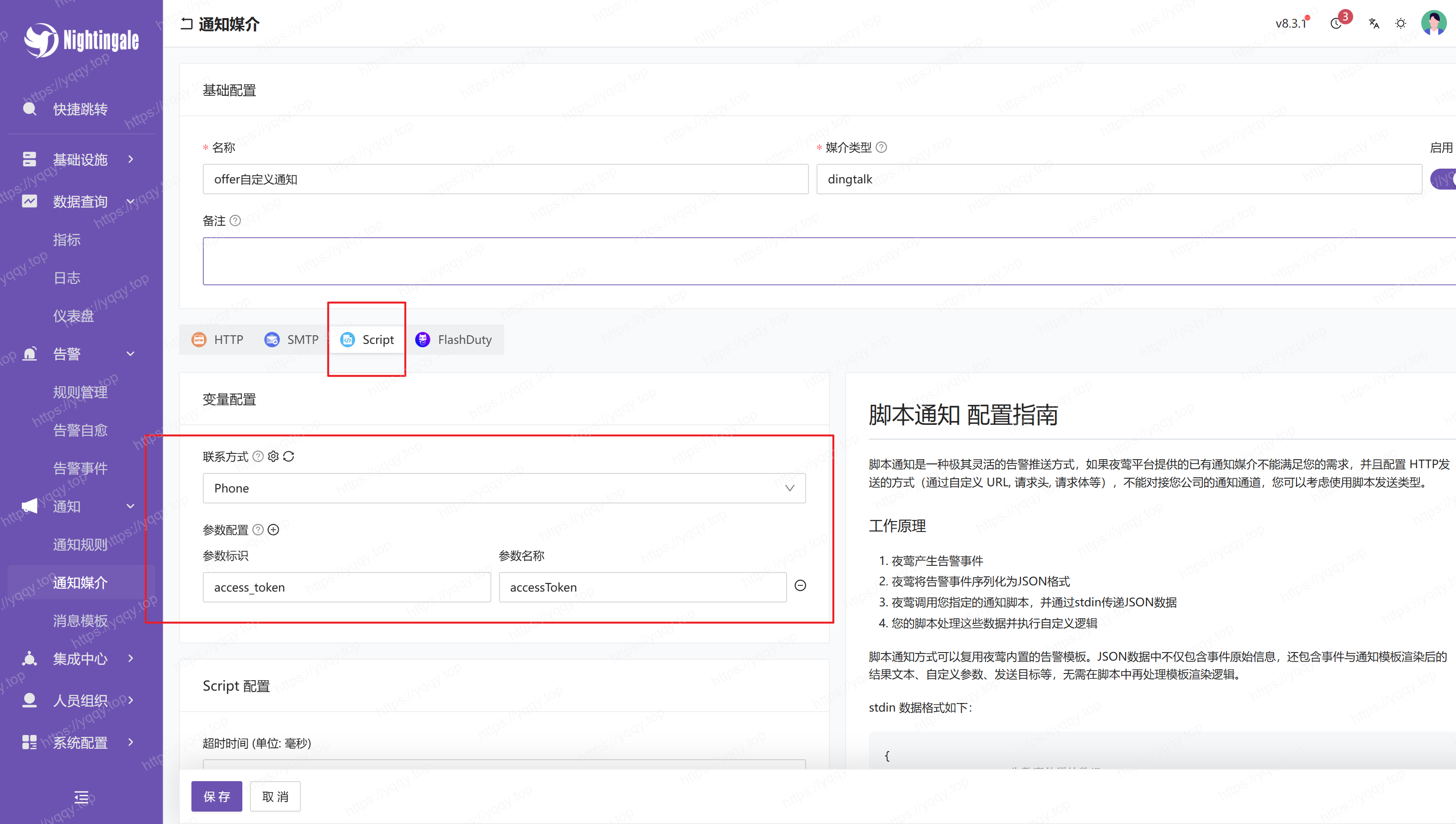

在通知媒介-右上角点击新增

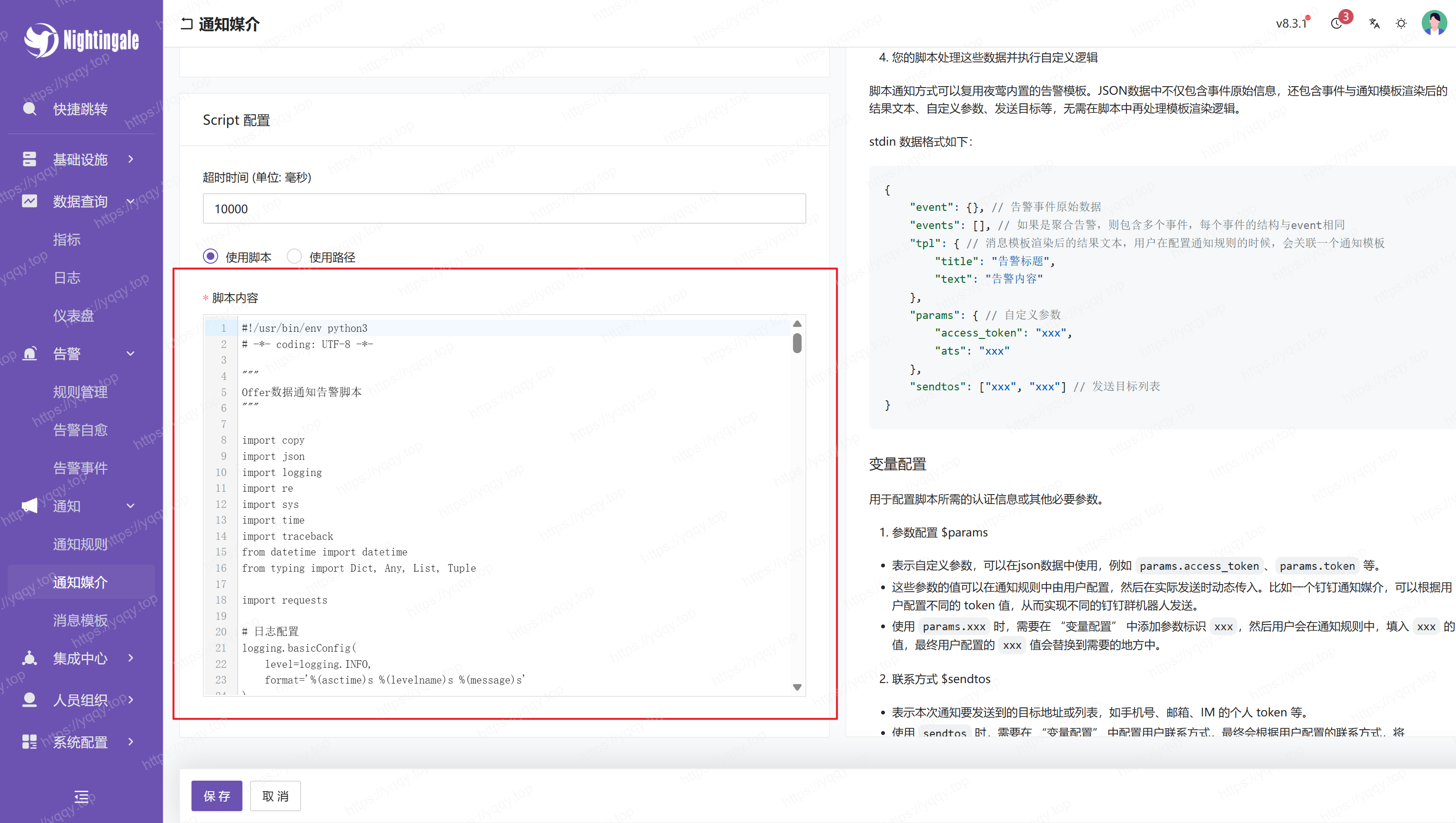

脚本内容参考：

代码展开

#!/usr/bin/env python3
# -*- coding: UTF-8 -*-

"""
Offer数据通知告警脚本
"""

import copy
import json
import logging
import re
import sys
import time
import traceback
from datetime import datetime
from typing import Dict, Any, List, Tuple

import requests

# 日志配置
logging.basicConfig(
    level=logging.INFO,
    format='%(asctime)s %(levelname)s %(message)s'
)

# 日志前缀
LOG_PREFIX = "[OfferNotify]"


# ================================
# 自定义类定义
# ================================

class CustomLogger:
    """自定义日志记录器，添加统一前缀"""

    def __init__(self, logger, prefix: str):
        self.logger = logger
        self.prefix = prefix

    def info(self, msg: str, *args, **kwargs):
        self.logger.info(f"{self.prefix} {msg}", *args, **kwargs)

    def error(self, msg: str, *args, **kwargs):
        self.logger.error(f"{self.prefix} {msg}", *args, **kwargs)

    def warning(self, msg: str, *args, **kwargs):
        self.logger.warning(f"{self.prefix} {msg}", *args, **kwargs)

    def debug(self, msg: str, *args, **kwargs):
        self.logger.debug(f"{self.prefix} {msg}", *args, **kwargs)


# 创建带前缀的日志记录器
logger = CustomLogger(logging.getLogger(__name__), LOG_PREFIX)

# ================================
# 配置和常量定义
# ================================

# UserId到手机号的映射配置
UID_MOBILE_MAPPING = {
    '10001': '15555550001',  # 用户1
    '10002': '15555550002',  # 用户2
    '10003': '15555550003'   # 用户3
}

# UserId到用户名的映射配置
UID_NAME_MAPPING = {
    '10001': '用户1',  # 用户1
    '10002': '用户2',  # 用户2
    '10003': '用户3'   # 用户3
}

# 用户角色与用户ID的映射配置
USER_ROLE_UID_MAPPING = {
    'AM': ['10001'],  # 用户1
    'PM': ['10002', '10003']  # 用户2，用户3
}

# ================================
# 数据解析和处理函数
# ================================

def parse_offer_ids_by_pm(tags: str) -> Dict[str, dict]:
    """
    按PM ID分组解析offer_ids，支持新的数据格式和notify_roles字段

    Args:
        tags: 包含offer_ids和notify_roles的标签字符串或字典

    Returns:
        Dict[str, dict]: 按PM ID分组的数据字典，格式为
        {pm_id: {'offer_ids': [oid1, oid2, ...], 'mobile': 'phone_number', 'notify_roles': ['AM', 'PM']}}
    """
    pm_groups = {}

    if not tags:
        return pm_groups

    # 提取notify_roles信息
    notify_roles = _extract_notify_roles(tags)
    offer_ids_raw = _extract_offer_ids_raw(tags)

    if not offer_ids_raw:
        return pm_groups

    # 解析每个offer数据项
    for item in offer_ids_raw.split(';'):
        item = item.strip()
        if not item:
            continue

        pm_id, offer_id = _parse_offer_item(item)

        if pm_id not in pm_groups:
            pm_groups[pm_id] = {
                'offer_ids': [],
                'mobile': UID_MOBILE_MAPPING.get(pm_id, ''),
                'notify_roles': notify_roles.copy()
            }
        pm_groups[pm_id]['offer_ids'].append(offer_id)

    return pm_groups


def _extract_notify_roles(tags) -> List[str]:
    """提取notify_roles信息"""
    notify_roles = []

    if isinstance(tags, dict):
        notify_roles_raw = tags.get('notify_roles', '')
    else:
        notify_roles_match = re.search(r'notify_roles=([^,]+)', str(tags))
        notify_roles_raw = notify_roles_match.group(1) if notify_roles_match else ''

    if notify_roles_raw:
        notify_roles = [user.strip() for user in notify_roles_raw.split(';') if user.strip()]

    return notify_roles


def _extract_offer_ids_raw(tags) -> str:
    """提取原始offer_ids字符串"""
    if isinstance(tags, dict):
        return tags.get('offer_ids', '')
    else:
        offer_ids_match = re.search(r'offer_ids=([^,]+)', str(tags))
        return offer_ids_match.group(1) if offer_ids_match else ''


def _parse_offer_item(item: str) -> Tuple[str, str]:
    """
    解析单个offer项目，返回(pm_id, offer_id)

    格式：oid:16_amid:64012_pmid:64012
    """
    # 新格式：oid:16_amid:64012_pmid:64012
    if 'oid:' in item and 'pmid:' in item:
        oid_match = re.search(r'oid:(\d+)', item)
        pmid_match = re.search(r'pmid:(\d+)', item)

        if oid_match and pmid_match:
            return pmid_match.group(1), oid_match.group(1)

    # 默认归到default组
    return 'default', item


def extract_data_from_string(stdin_data: str) -> Dict[str, Any]:
    """
    从字符串中提取关键数据，返回构建的payload

    Args:
        stdin_data: 标准输入的字符串数据

    Returns:
        Dict: 构建的payload字典
    """
    payload = {"tpl": {}, "params": {}, "sendto": []}

    # 提取tplContent
    content_match = re.search(r'tplContent:map\[content:(.*?) title:(.*?)]', stdin_data)
    if content_match:
        payload["tpl"]["content"] = content_match.group(1)
        payload["tpl"]["title"] = content_match.group(2)

    # 提取customParams中的access_token
    params_match = re.search(r'customParams:map\[(.*?)\]', stdin_data)
    if params_match:
        params_str = params_match.group(1)
        access_token_match = re.search(r'access_token:(.*?)(?: |$)', params_str)
        if access_token_match:
            payload["params"]["access_token"] = access_token_match.group(1)

    # 检查是否有err字段
    err_match = re.search(r'err:(.*?)(?:,|\s|$)', stdin_data)
    if err_match:
        error_msg = err_match.group(1)
        logger.error(f"检测到脚本错误: {error_msg}")

    return payload


# ================================
# 消息格式化函数
# ================================

def format_alert_message_for_pm(event: Dict[str, Any], pm_id: str, pm_data: dict) -> Tuple[str, str]:
    """
    为特定PM格式化告警消息

    Args:
        event: 事件数据字典
        pm_id: PM ID
        pm_data: 该PM的数据，包含offer_ids列表、mobile和notify_roles

    Returns:
        Tuple[str, str]: (title, content) 格式化后的标题和内容
    """
    # 提取基本信息
    rule_name = event.get('rule_name', '告警通知')
    group_name = event.get('group_name', 'unknown')
    severity = event.get('severity', 1)
    trigger_time = event.get('trigger_time', 0)

    # 格式化标题
    title = f"💔{rule_name}"

    # 格式化触发时间
    trigger_time_str = _format_trigger_time(trigger_time)

    # 提取PM相关信息
    offer_ids = pm_data.get('offer_ids', [])
    notify_roles = pm_data.get('notify_roles', [])
    offer_ids_str = '; '.join(offer_ids)
    notify_roles_str = '; '.join(notify_roles) if notify_roles else '未指定'

    # 构建内容模板
    content = f"""#### <font color="#FF0000">{title}</font>

---

{group_name}
* **告警级别**: {severity}级
* **触发时间**: {trigger_time_str}
* **PM**: {pm_id}-{UID_NAME_MAPPING.get(pm_id, '未知')}
* **通知角色**: {notify_roles_str}
* **Offer IDs({len(offer_ids)})**: {offer_ids_str}
"""

    return title, content


def _format_trigger_time(trigger_time: int) -> str:
    """格式化触发时间"""
    if trigger_time:
        return datetime.fromtimestamp(trigger_time).strftime('%Y-%m-%d %H:%M:%S')
    return '未知时间'


# ================================
# 通知发送函数
# ================================

def send_notify(payload: Dict[str, Any]) -> None:
    """
    发送通知的主入口函数

    Args:
        payload: 包含告警信息的字典
    """
    try:
        event = _extract_event_from_payload(payload)
        tags = event.get('tags_map', '')
        pm_groups = parse_offer_ids_by_pm(tags)

        if len(pm_groups) > 1:
            logger.info(f"检测到多个PM ({len(pm_groups)}个)，将分别发送通知")
            send_notify_by_pm(payload)
        else:
            pass

    except Exception as e:
        logger.error(f"发送通知失败: {str(e)}")


def send_notify_by_pm(payload: Dict[str, Any]) -> None:
    """
    按PM分组发送通知，根据PM ID和notify_roles确定具体的通知人

    Args:
        payload: 包含告警信息的字典
    """
    try:
        access_token = payload.get('params', {}).get('access_token')
        event = _extract_event_from_payload(payload)

        # 解析PM分组
        tags = event.get('tags_map', '')
        pm_groups = parse_offer_ids_by_pm(tags)

        if not pm_groups:
            logger.warning("未找到有效的PM分组数据")
            return

        logger.info(f"检测到 {len(pm_groups)} 个PM分组: {list(pm_groups.keys())}")

        # 为每个PM分别发送通知
        for pm_id, pm_data in pm_groups.items():
            try:
                _send_notification_for_pm(access_token, event, pm_id, pm_data, len(pm_groups) > 1)
            except Exception as e:
                logger.error(f"为PM {pm_id} 发送通知失败: {str(e)}")

    except Exception as e:
        logger.error(f"按PM分组发送钉钉通知失败: {str(e)}")


def _extract_event_from_payload(payload: Dict[str, Any]) -> Dict[str, Any]:
    """从payload中提取事件信息"""
    event = payload.get('event', {})
    if not event and payload.get('events') and len(payload.get('events', [])) > 0:
        event = payload.get('events')[0]
    return event


def _determine_notification_recipients(pm_data: dict, pm_id: str = None) -> List[str]:
    """根据PM数据确定通知接收者"""
    notify_roles = pm_data.get('notify_roles', [])
    sendtos = []

    if notify_roles:
        # 根据notify_roles字段确定接收者
        # for user_role in notify_roles:
        #     if user_role == "AM":
        #         # 添加AM的手机号
        #         am_user_ids = USER_ROLE_UID_MAPPING.get("AM", [])
        #         for am_uid in am_user_ids:
        #             am_mobile = UID_MOBILE_MAPPING.get(am_uid)
        #             if am_mobile and am_mobile not in sendtos:
        #                 sendtos.append(am_mobile)

        # 确保该PM本身也会收到通知（如果PM ID有效且有对应手机号）
        if pm_id and pm_id in UID_MOBILE_MAPPING:
            pm_mobile = UID_MOBILE_MAPPING[pm_id]
            if pm_mobile not in sendtos:
                sendtos.append(pm_mobile)

        # 如果sendtos为空，添加默认AM手机号
        # if not sendtos:
        #     am_user_ids = USER_ROLE_UID_MAPPING.get("AM", [])
        #     for am_uid in am_user_ids:
        #         am_mobile = UID_MOBILE_MAPPING.get(am_uid)
        #         if am_mobile and am_mobile not in sendtos:
        #             sendtos.append(am_mobile)

        # 去重
        sendtos = list(set(sendtos))
    else:
        # 如果没有notify_roles信息，使用PM对应的手机号（向后兼容）
        mobile = pm_data.get('mobile', '')
        if mobile:
            sendtos = [mobile]

    return sendtos


def _send_notification_for_pm(access_token: str, event: Dict[str, Any], pm_id: str, pm_data: dict, add_delay: bool = False):
    """为单个PM发送通知"""
    sendtos = _determine_notification_recipients(pm_data, pm_id)
    if not sendtos:
        logger.warning(f"PM {pm_id} 没有找到有效的通知接收者，跳过通知")
        return

    # 获取该PM的通知内容
    title, content = format_alert_message_for_pm(event, pm_id, pm_data)
    offer_ids = pm_data.get('offer_ids', [])
    notify_roles = pm_data.get('notify_roles', [])

    logger.info(f"为PM {pm_id} 发送通知，包含 {len(offer_ids)} 个offer，接收者: {sendtos}")
    if notify_roles:
        logger.info(f"根据notify_roles {notify_roles} 确定通知接收者: {sendtos}")
    else:
        mobile = pm_data.get('mobile', '')
        logger.info(f"使用PM {pm_id} 对应的手机号: {mobile}")

    _send_dingtalk_message(access_token, title, content, sendtos)

    # 为了避免钉钉API限流，在多个通知之间添加短暂延迟
    if add_delay:
        time.sleep(0.5)


def _send_dingtalk_message(access_token: str, title: str, content: str, sendtos: List[str]):
    """发送钉钉消息"""
    if not access_token:
        logger.error("未提供有效的钉钉机器人access_token")
        return

    # 生成@手机号格式的字符串
    ats_string = ' '.join([f"@{mobile}" for mobile in sendtos])

    message = {
        "msgtype": "markdown",
        "markdown": {
            "title": title,
            "text": f"{content}\n{ats_string}"
        },
        "at": {
            "atMobiles": sendtos
        }
    }

    url = f"https://oapi.dingtalk.com/robot/send?access_token={access_token}"
    headers = {"Content-Type": "application/json;charset=utf-8"}

    try:
        response = requests.post(url, headers=headers, json=message, timeout=5)
        logger.info(f"钉钉通知结果: status={response.status_code} response={response.text}")
    except Exception as e:
        logger.error(f"发送钉钉消息失败: {str(e)}")


# ================================
# 输入处理和文件操作函数
# ================================

def read_and_parse_input() -> Dict[str, Any]:
    """读取并解析标准输入"""
    try:
        stdin_data = sys.stdin.read()
        _save_raw_input(stdin_data)

        # 优先尝试解析JSON
        try:
            payload = json.loads(stdin_data)
        except json.JSONDecodeError:
            # JSON解析失败，尝试字符串提取
            if "tplContent" in stdin_data:
                payload = extract_data_from_string(stdin_data)
                logger.info("从原始文本提取数据成功")
            else:
                logger.error("无法识别的数据格式")
                payload = {
                    "tpl": {"content": "无法解析输入数据", "title": "告警通知"},
                    "params": {},
                    "sendto": []
                }

        _save_payload(payload)
        return payload

    except Exception as e:
        logger.error(f"读取输入失败: {e}")
        return {
            "tpl": {"content": "读取输入失败", "title": "告警通知"},
            "params": {},
            "sendto": []
        }


def _save_raw_input(stdin_data: str):
    """保存原始输入数据（隐藏敏感信息）"""
    try:
        sanitized_data = stdin_data.replace(
            r'dingtalk_access_token:[^ ]*',
            'dingtalk_access_token:[REDACTED]'
        )
        with open(".raw_input", 'w') as f:
            f.write(sanitized_data)
    except Exception as e:
        logger.debug(f"保存原始输入失败: {e}")


def _save_payload(payload: Dict[str, Any]):
    """保存处理后的payload（隐藏敏感信息）"""
    try:
        safe_payload = copy.deepcopy(payload)
        if 'params' in safe_payload and 'access_token' in safe_payload['params']:
            safe_payload['params']['access_token'] = '[REDACTED]'

        with open(".payload", 'w') as f:
            f.write(json.dumps(safe_payload, indent=4))
    except Exception as e:
        logger.debug(f"保存payload失败: {e}")


# ================================
# 主函数
# ================================

def main():
    """主函数入口"""
    try:
        logger.info("开始执行Offer数据通知告警脚本")

        # 读取并解析输入
        payload = read_and_parse_input()

        # 处理发送
        send_notify(payload)

    except Exception as e:
        logger.error(f"处理异常: {e}")
        logger.error(f"错误详情: {traceback.format_exc()}")
        sys.exit(1)  # 确保错误状态正确传递


if __name__ == "__main__":
    main()

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511

夜莺v8执行自定义脚本并告警通知 ​

系统架构图 ​

数据流说明 ​

Categraf ​

自定义脚本 ​

配置夜莺告警 ​

自定义告警 ​
