MacOS-如何删除Free Space,使得APFS容器将Free Space占用

背景

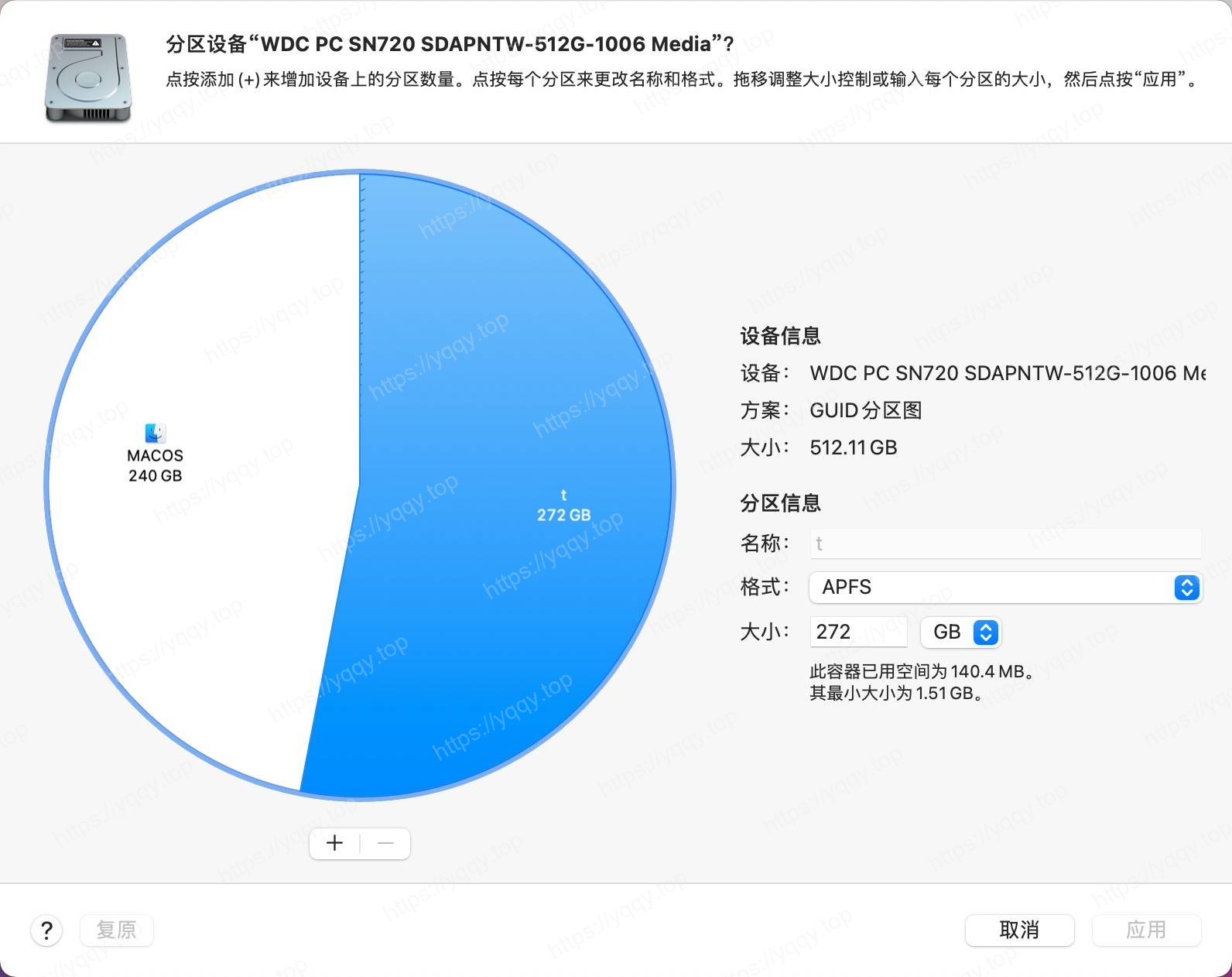

事故的开始是由于我要从MacOS11.6升级到MacOS12(追新的强迫症),从而导致再换了支持MacOS12的EFI之后无法开机(卡三分之一进度条后黑屏),随后想着去重装11.6系统(在12系统上修了半天EFI还是无果,觉得浪费时间不想继续折腾),在重装时为了保全文件选择磁盘分一半空间去安装11.6,这样另一半还是原来那个无法开机的系统,等11.6开机后再将原来的文件复制过来。。。等到原来的文件移动完毕之后,准备去删除原来的空间,与新的系统盘合并。但是在删除时,出现了无法删除的问题,如下:



操作步骤

  1. 在终端输入 diskutil list
bash
bobo@Mac:~ » diskutil list
/dev/disk0 (internal, physical):
   #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:      GUID_partition_scheme                        *512.1 GB   disk0
   1:                        EFI EFI                     209.7 MB   disk0s1
   2:                 Apple_APFS Container disk2         271.6 GB   disk0s2
   3:                 Apple_APFS Container disk1         240.3 GB   disk0s3

/dev/disk1 (synthesized):
   #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:      APFS Container Scheme -                      +240.3 GB   disk1
                                 Physical Store disk0s3
   1:                APFS Volume MacOS - 数据             94.2 GB    disk1s1
   2:                APFS Volume Preboot                 284.3 MB   disk1s2
   3:                APFS Volume Recovery                622.8 MB   disk1s3
   4:                APFS Volume VM                      1.1 GB     disk1s4
   5:                APFS Volume MacOS                   15.3 GB    disk1s5
   6:              APFS Snapshot com.apple.os.update-... 15.3 GB    disk1s5s1
  1. 输入 diskutil apfs deleteContainer disk0s2 删除 Apple_APFS Container disk2 的空间

  2. 输入diskutil list 查看删除后的空间

bash
bobo@Mac:~ » diskutil list
/dev/disk0 (internal, physical):
   #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:      GUID_partition_scheme                        *512.1 GB   disk0
   1:                        EFI EFI                     209.7 MB   disk0s1
                      (free space)                       271.6 GB   -
   2:                 Apple_APFS Container disk1         240.3 GB   disk0s3

/dev/disk1 (synthesized):
   #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:      APFS Container Scheme -                      +240.3 GB   disk1
                                 Physical Store disk0s3
   1:                APFS Volume MacOS - 数据             94.2 GB    disk1s1
   2:                APFS Volume Preboot                 284.3 MB   disk1s2
   3:                APFS Volume Recovery                622.8 MB   disk1s3
   4:                APFS Volume VM                      1.1 GB     disk1s4
   5:                APFS Volume MacOS                   15.3 GB    disk1s5
   6:              APFS Snapshot com.apple.os.update-... 15.3 GB    disk1s5s1
  1. 输入diskutil addpartition disk0s1 apfs NewAPFS 0 创建一个新的APFS容器

  2. 输入diskutil list 查看新增后的空间

bash
bobo@Mac:~ » diskutil list
/dev/disk0 (internal, physical):
   #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:      GUID_partition_scheme                        *512.1 GB   disk0
   1:                        EFI EFI                     209.7 MB   disk0s1
   2:                 Apple_APFS Container disk2         271.6 GB   disk0s4
   3:                 Apple_APFS Container disk1         240.3 GB   disk0s3

/dev/disk1 (synthesized):
   #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:      APFS Container Scheme -                      +240.3 GB   disk1
                                 Physical Store disk0s3
   1:                APFS Volume MacOS - 数据             94.2 GB    disk1s1
   2:                APFS Volume Preboot                 284.3 MB   disk1s2
   3:                APFS Volume Recovery                622.8 MB   disk1s3
   4:                APFS Volume VM                      1.1 GB     disk1s4
   5:                APFS Volume MacOS                   15.3 GB    disk1s5
   6:              APFS Snapshot com.apple.os.update-... 15.3 GB    disk1s5s1

/dev/disk2 (synthesized):
 #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:      APFS Container Scheme -                      +271.6 GB   disk2
                                 Physical Store disk0s4
   1:                APFS Volume NewAPFS                 995.3 KB   disk2s1
  1. 使用asr工具将第一次挂载盘中的BaseSystem.dmg恢复到空的挂载镜像中,命令如下:

    sudo asr --source /dev/disk1s5s1 --target /dev/disk2 --erase

  2. 重启电脑,用新的挂载镜像启动

  3. 输入diskutil list 查看当前空间

bash
bobo@Mac:~ » diskutil list
/dev/disk0 (internal, physical):
   #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:      GUID_partition_scheme                        *512.1 GB   disk0
   1:                        EFI EFI                     209.7 MB   disk0s1
   2:                 Apple_APFS Container disk1         271.6 GB   disk0s2
   3:                 Apple_APFS Container disk2         240.3 GB   disk0s3

/dev/disk1 (synthesized):
   #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:      APFS Container Scheme -                      +271.6 GB   disk1
                                 Physical Store disk0s2
   1:                APFS Volume MacOS - 数据             94.2 GB    disk1s1
   2:                APFS Volume MacOS                   15.3 GB    disk1s2
   3:              APFS Snapshot com.apple.os.update-... 15.3 GB    disk1s2s1
   4:                APFS Volume Preboot                 284.3 MB   disk1s3
   5:                APFS Volume Recovery                622.8 MB   disk1s4
   6:                APFS Volume VM                      1.1 GB     disk1s5

/dev/disk2 (synthesized):
 #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:      APFS Container Scheme -                      +240.3 GB   disk2
                                 Physical Store disk0s3
   1:                APFS Volume MacOS - 数据             94.2 GB    disk2s1
   2:                APFS Volume Preboot                 284.3 MB   disk2s2
   3:                APFS Volume Recovery                622.8 MB   disk2s3
   4:                APFS Volume VM                      1.1 GB     disk2s4
   5:                APFS Volume MacOS                   15.3 GB    disk2s5
  1. 输入 diskutil apfs deleteContainer disk2 删除之前旧的的空间

  2. 输入diskutil apfs resizecontainer disk1 0 回收可用空间,大功告成

参考

How to make remove free space and make APFS container take it up
